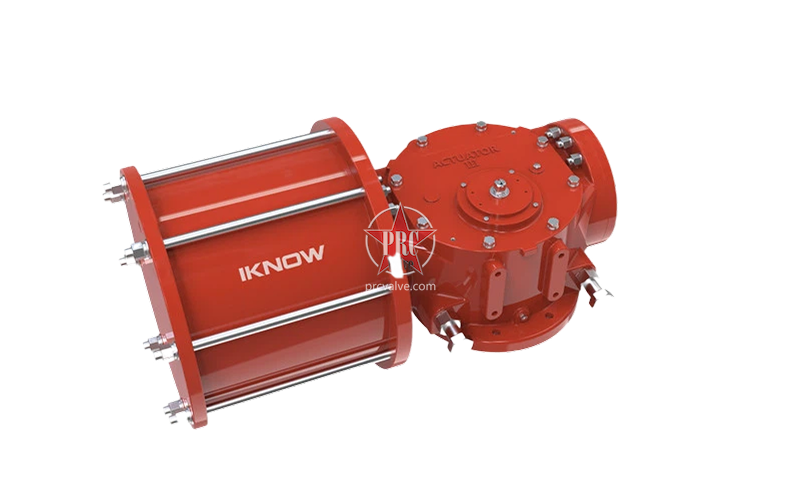

External Pull Rod Fork Type Cylinder

Collect

Manufacturer

IKNOW Co.,LTD.

Address：No. 4, Building 2367, Sanli Road, Binhai District Telephone：0577-85825555

Product Parameters

Allow air source pressure：2bar-10bar（29psi-145psi）

Maximum output torque of cylinder (5 bar)：225364N.m

temperature range：-46 degrees to 149 degrees (-51 ℉ to 300 ℉)

Product Features

A fork type pneumatic actuator is a type of pneumatic actuator that uses a fork to drive a valve to rotate, achieving switching or adjustment. It usually consists of three modules: a cylinder module, a housing module, and a spring module.

Fork type pneumatic actuators have the characteristics of simple structure, flexible operation, large output torque, and long stroke. They are widely used in industries such as petroleum, chemical, metallurgical, and power generation to control the opening and closing of various valves.

Product Details

Fork type pneumatic actuator is a type of pneumatic actuator that uses a fork to drive the valve to rotate, achieve switching or adjustment. It usually consists of three modules: cylinder module, housing module, and spring module.

Manufacturer

IKNOW Co.,LTD.

ADDRESS：No. 4, Building 2367, Sanli Road, Binhai District

TEL：0577-85825555
